GAMA Electronics RF Remote 120VAC On-Off or AC Motor Reversing Control

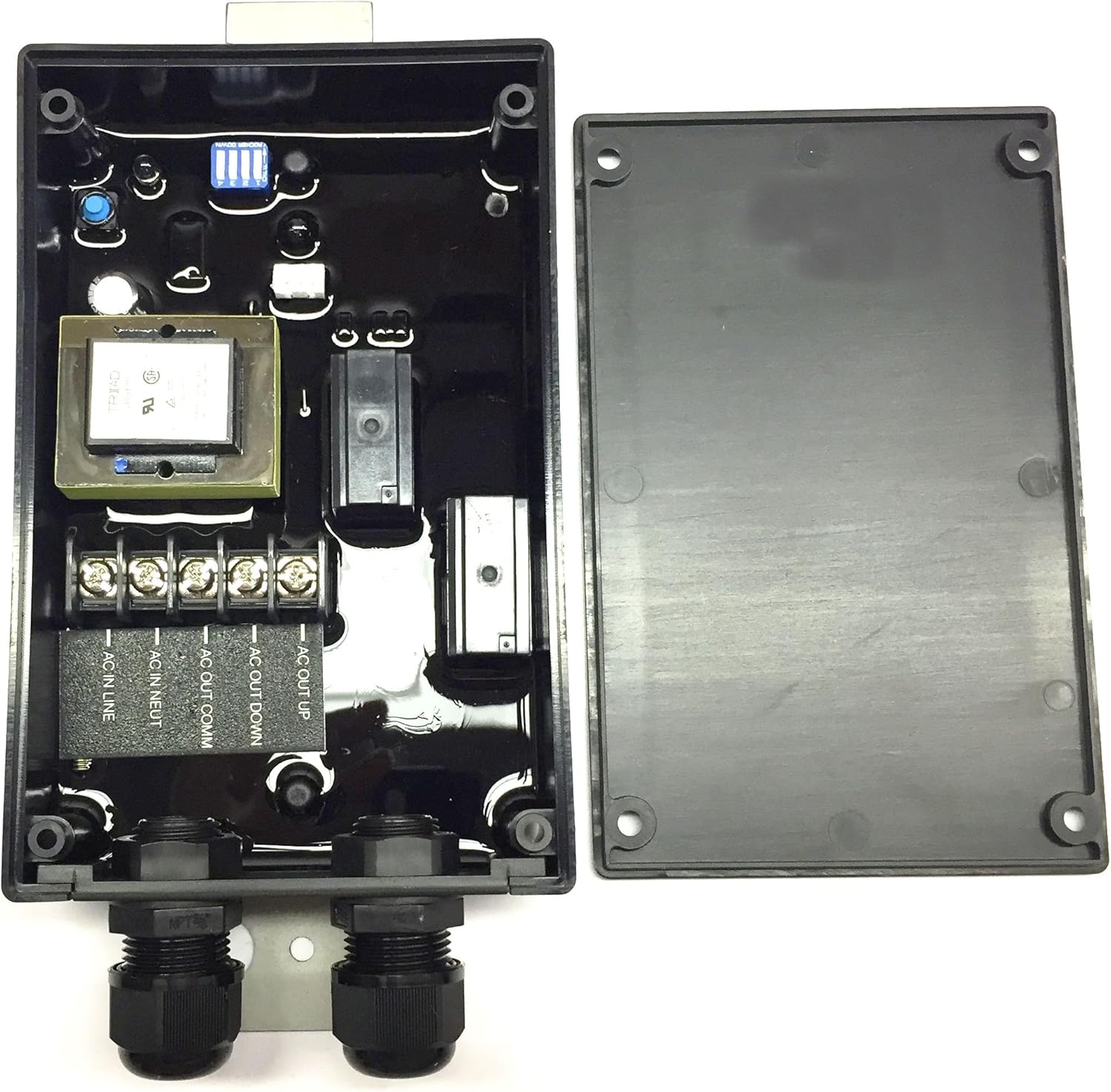

The RF120V-2WP remote control is designed to provide two normally-open 120 Volt outputs. It can be used as an On-Off control or as a reversing control for 3-wire AC motors. Dip switches allow the outputs to be momentary or latching. The receiver operates from a 120 VAC power source. The outputs are controlled via a 2-button key fob transmitter. The output relays are rated at 25-amps and 1 HP @ 120VAC. The receiver electronics are encapsulated for waterproofing and it is suitable for use in harsh environments. Operating temperature range - 0° F to 160° F. Receiver dimensions are approximately 6" L x 4" W x 2.25" H. There is a terminal block for the connections. Transmit range is greater than 100 feet under normal operating conditions. FCC Approved. Proudly made in the U.S.A. Please note: This control will not reverse a 4 or 6 wire motor. For those applications, our LRF120VPR1L control should be used.
