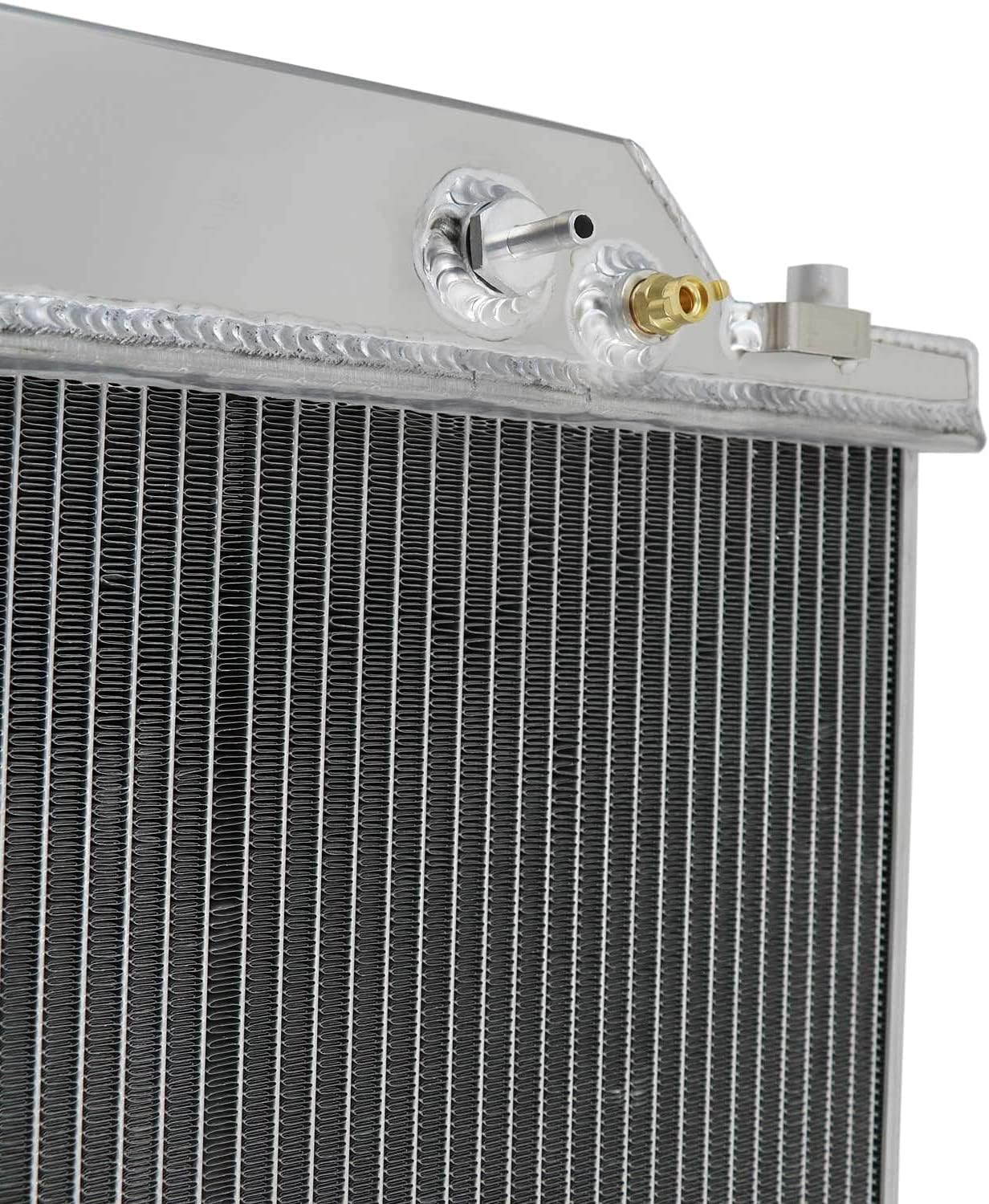

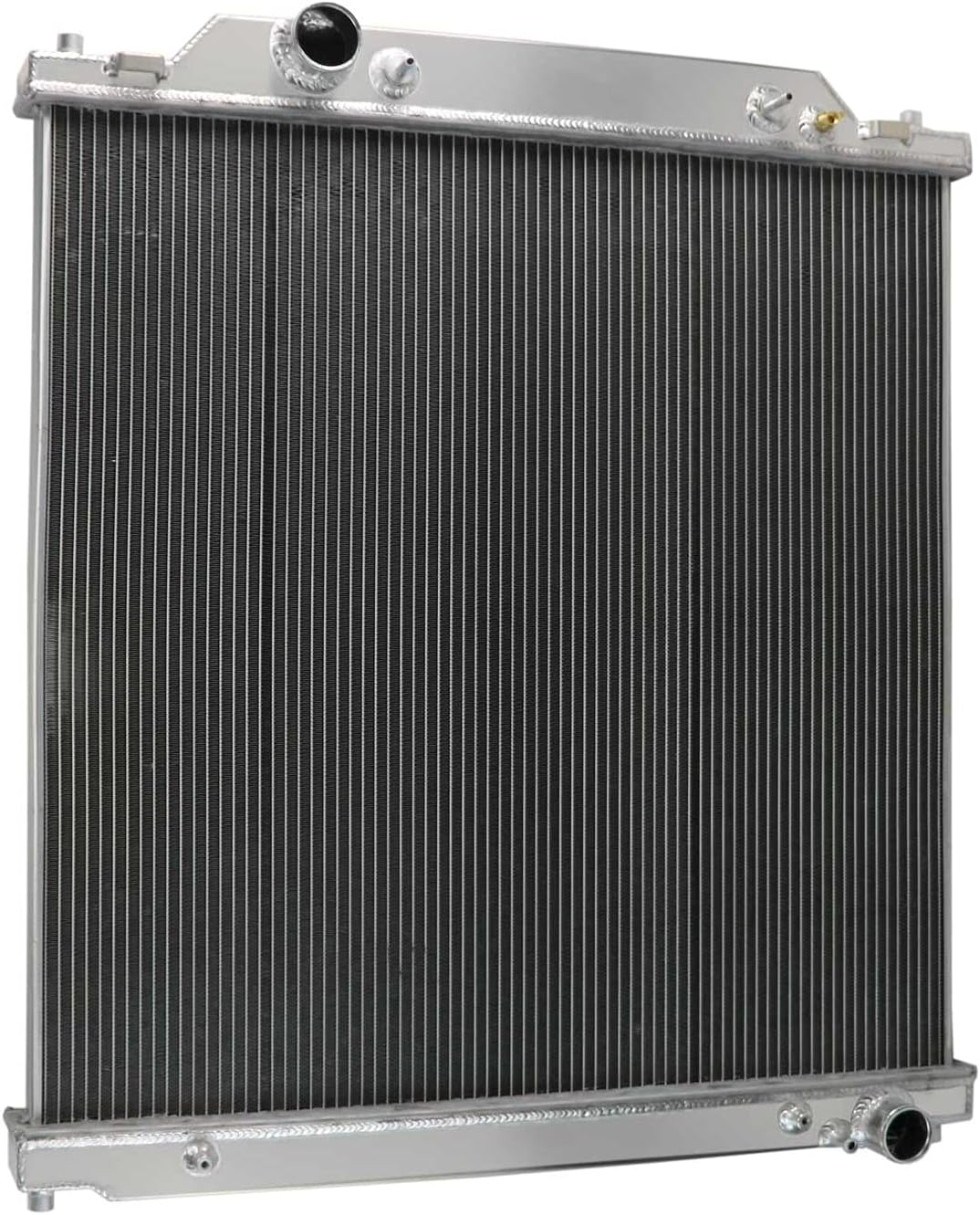

CoolingCare All Aluminum Radiator for 03-07 FORD F250 F350 F450 Super Duty 6.0L V8 Turbo Diesel Powerstroke Engine 3 row radiator + shroud + fan + relay kit

This Listing Including: 1 * Full Aluminum Radiator (3 Rows Core) 1 * Aluminum Shroud 2 * 12'' Fan 1 * Relay Kit CNC machined filler neck and cap OEM Style Brass Petcock Drain This Radiator Compatible with: 2003-2007 Ford F-250 Super Duty 6.0L V8 Engine 2003-2007 Ford F-350 Super Duty 6.0L V8 Engine 2003-2007 Ford F-450 Super Duty 6.0L V8 Engine Radiator Details: Core: 3 row core Core Material: full aluminum Tank Material: full aluminum Radiator Cap: CNC machined filler neck and cap Down Flow Or Cross Flow Type: Down Flow Overall Size: 30.2"in x 34.5"in Core Size: 29.06"in x 28.54"in Inlet:1.77"in Outlet:1.97"in Tank Wall Thickness:0.08" Drain Plug Thread Size:M12 x 1.5 Please Check the Size Before You Buy! Fan Specification: 12" Fan Voltage: DC 12 Volts Maximum Fan CFM: 2150 cfm Wattage: 80 Wattage Thickness (in): 2.500" Number of Blades: 10 blades Maximum Fan RPM: 2,250 rpm Amp Draw: 12.70 amps Thermostat Relay Kit * Activates by grounding electric fans at preset temperature. * 180'F/165'F turn-on/off temperature. * RED + connect directly to battery. * WHITE wire to ignition switch power source. * BLACK goes to thermos switch. * BLUE wire goes to the Fans. Manufacturer Part Number: DPI 2741, 2741, CU2741, DPI2741, RAD2741 Interchange Part Number: FO3010256, 4C3Z8009BA

• Direct fit for 2003-2007 Ford truck/pickup equipped with 6.0L Powerstroke
• Overall Size: 30.2'' x 34.5''; Core Size: 29'' x 28.5''; Inlet/ Outlet Diameter: 1.77''/ 1.97''
• 3 row core, 1.73'' (44mm) core thickness
• Vehicle test-fitted prior to market release, ensuring perfect drop-in fit
• Built with high density multi-louvered fins for maximum cooling efficiency, to ensure durability in extreme weather
• part_number BEI-COOLCARE-1258-4
