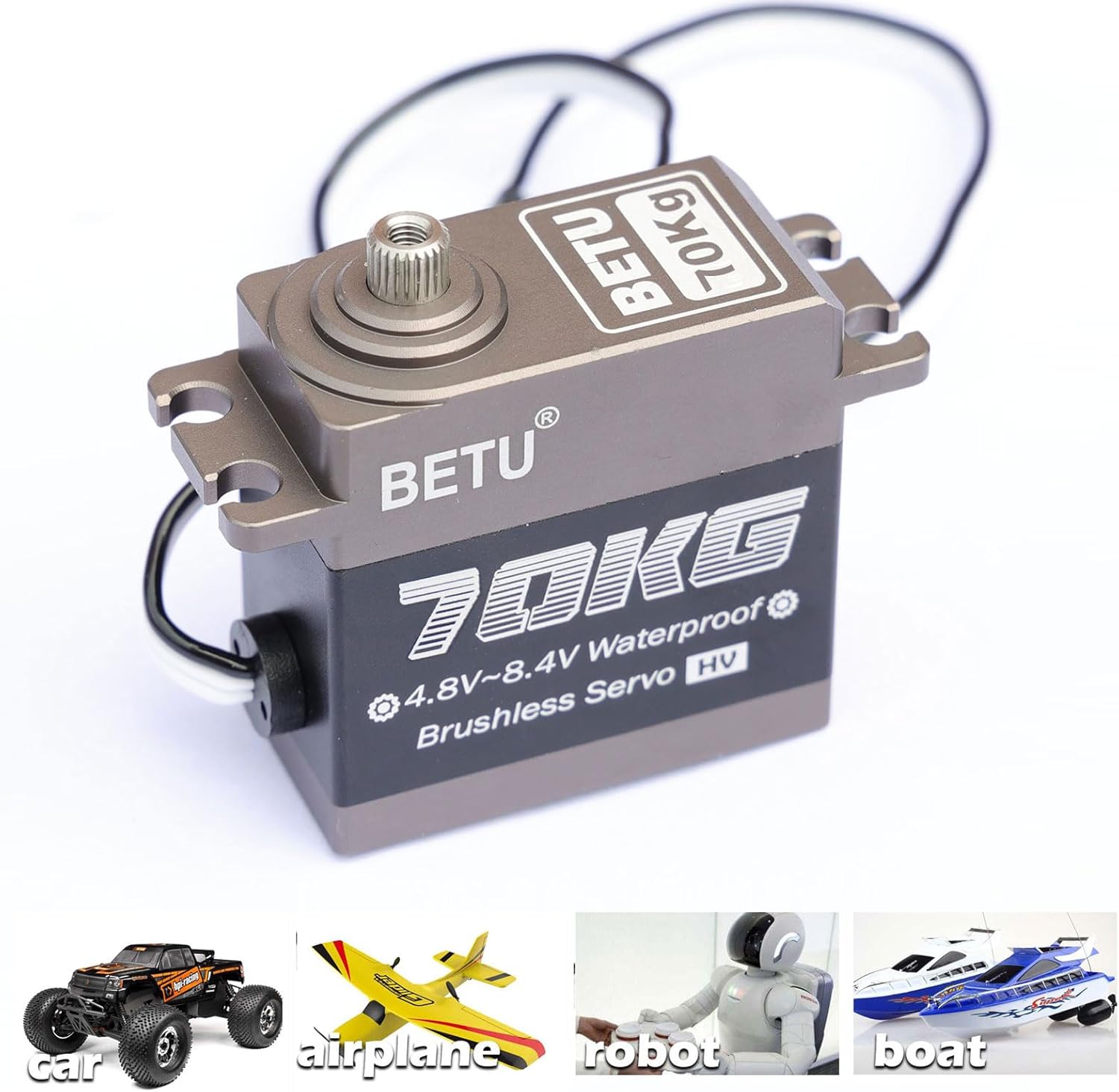

70kg Brushless Servo, High Torque Servo, Waterpoof Servo Compatible with 1/5，1/6, 1/8, 1/10 RC Car/Robot/Boat

70KG Brushless High Torque Digital Servo is ideal for car, airplane ,and robot.Great digital Servo for people who are interested in developing software for robot parts,Such as mechanical arm, Quadcopter Drone and other remote control equipment.-High-speed big torque digital servo-High voltage 4.8~8.4V-Servo Equipped with full aluminum case and 5 Metal Gear-CNC aluminum middle shell, higher operating accuracy-Less Noise, light weight-Stable and waterproofProducts Name:70KG Brushless ServoApply Environmental ConditonStorage Temperature Range -30°C～80°COperating Temperature Range -25°C～70°CItem SpecifcationTemperature Range -25°C～70°CHumidity Range 65%±10%Mechanical SpecificationSize 40.0*39.8*20.0mmWeight 80g±5%Gear type "5 Metal"Limit angle 360°Bearing 2BBHorn gear spline 25T Φ5.9mm Case "Integral Aluminum alloy"Connector wire 320mm±5mmMotor Brushless Splash water resistance IP67Electrical SpecificationOperat voltage 4.8V/8.4VNo load speed 0.13sec/60°/0.10sec/60°Runnig current 220mA/360mAPeak stall torque 55.0kg.cm/71.0kg.cmStall current 7340mA±10%/12080mA±10%Working voltage range 4.8-8.4VControl SpecificationCommand signal Pulse width modificationAmplifier type Digital controllerPulse width range 500～2500usecNeutral position 1500usecRunning degree 180°±3°(when 500～2500usec) Dead band width 2 usecRotating direction Counterclockwise (when 1000～2000usec)

• High Torque Servo： 70kg Brushless Servo's maximum torque is up to 55 kg/cm-4.8V, 70 kg/cm-8.4V, high torque, Compatible with 1/5，1/6, 1/8, 1/10 RC Car / Robot / Boat.

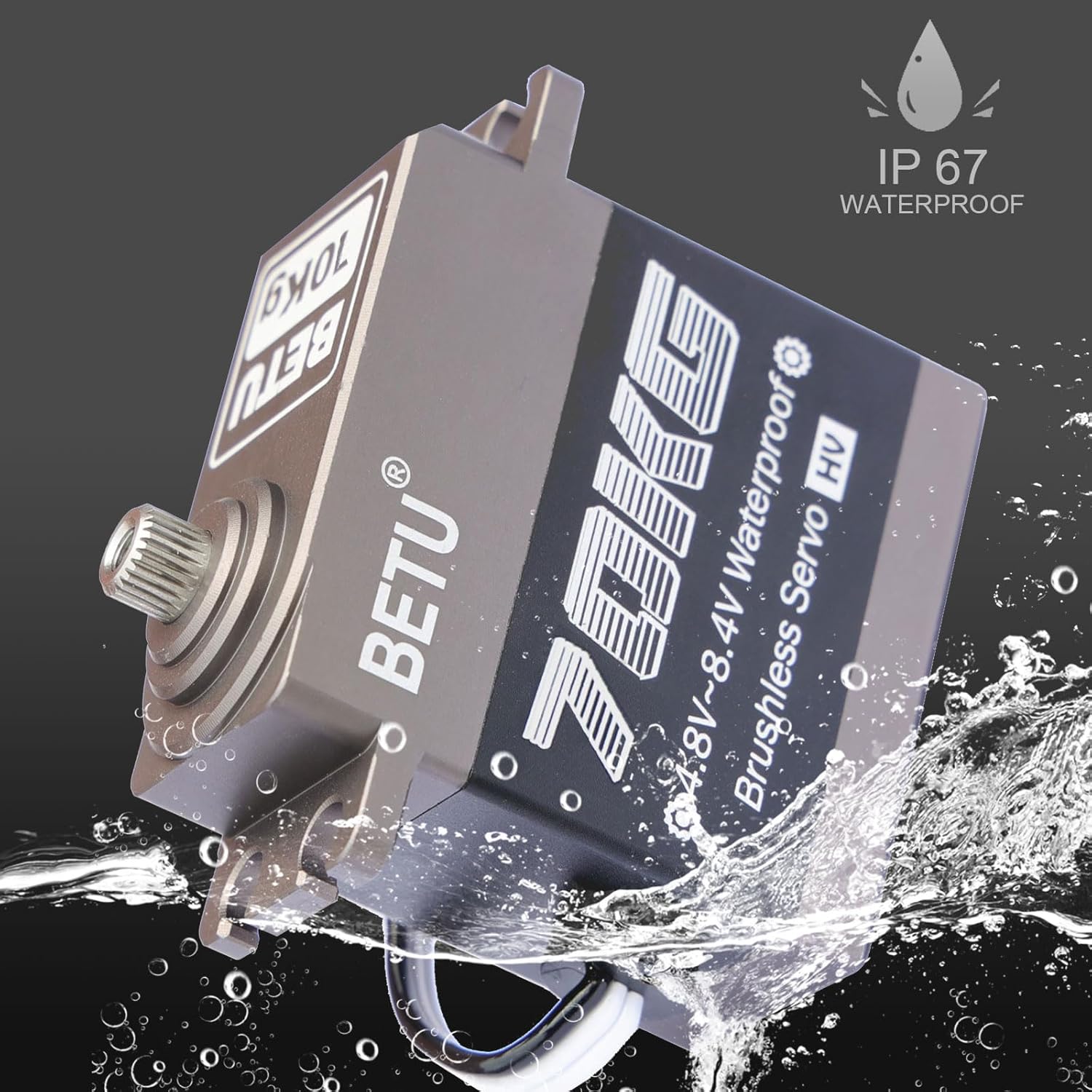

• 70kg Waterpoof Servo: Waterproof performance IP67. Controllable angle range from 0 to 180 degrees, Excellent linearity, precision control.
• High voltage Servo: BETU 70kg Brushless Servo Adapts to High voltage 4.8~8.4V, High-pressure steering servo, more powerful and powerful, longer life.

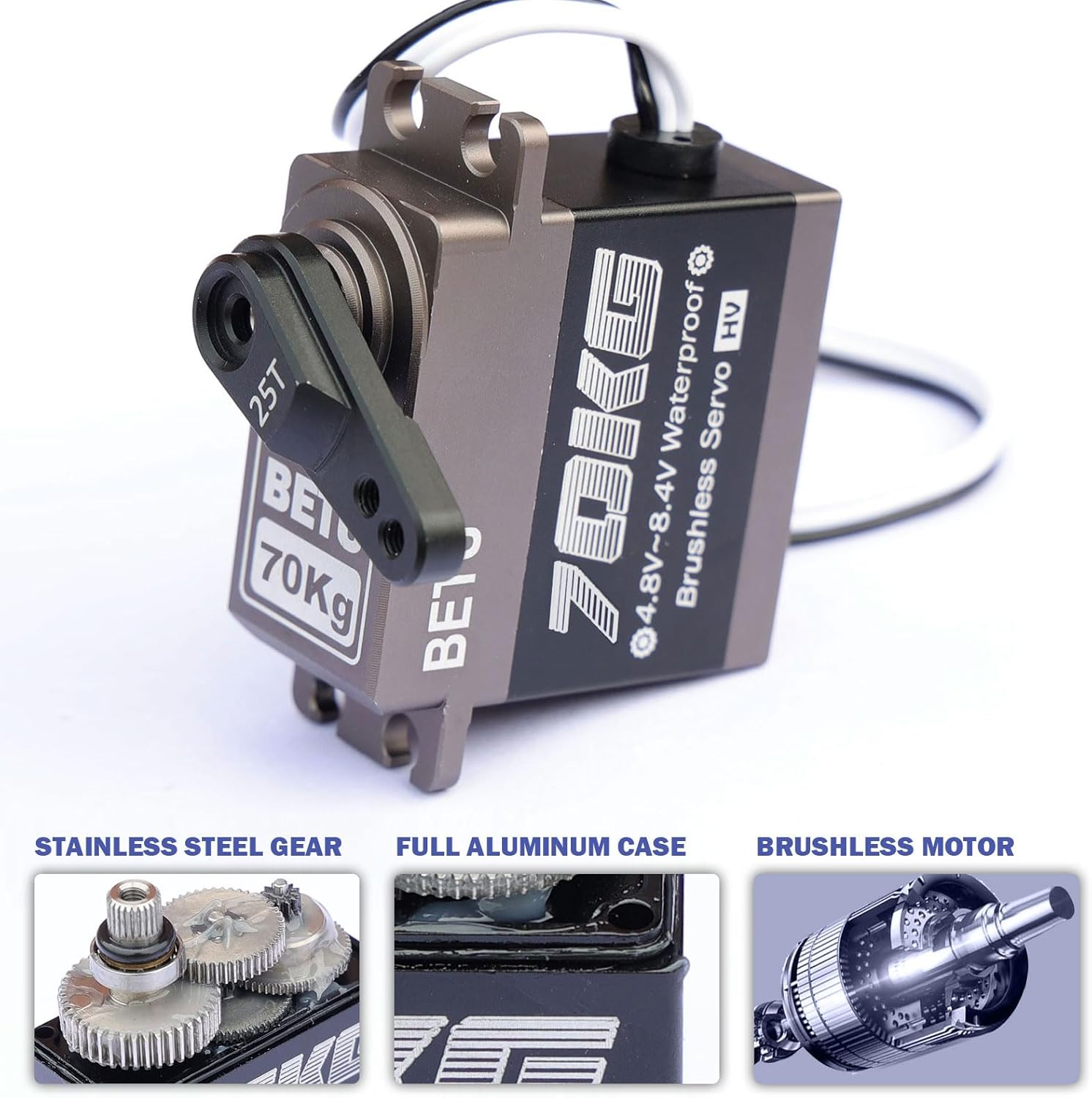

• All metal servo: Equipped with full aluminum case and Metal Gear, CNC aluminium middle shell, less noise, light weight, higher operating accuracy.
• Product Dimension: 1.57 x 0.78 x 1.57 inch(40 x 20 x 39.8 mm); Weight:2.7oz (80g); With one 25T adjustable metal servo arm.
